JYCQ Series Sheet Punching Machine

Application

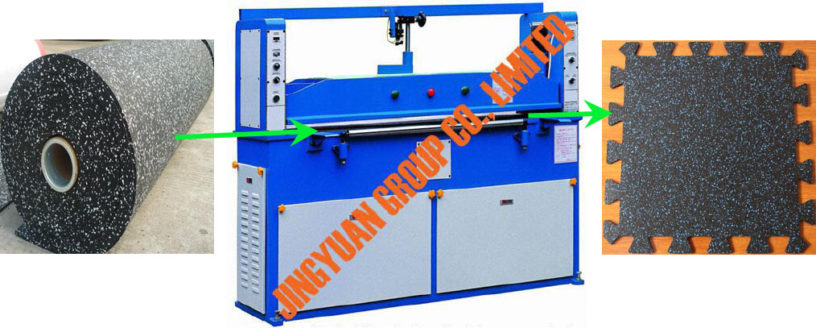

It is also named die punching machine or die cutting machine, used to punch sheet products to mat products, the material can be punched by this machine can be rubber, leather, PVC, EVA, expandable polyethylen, foamed polystyrene, fabric, paper, etc. The finished mat shape and size will be exactly same as the knife shape and size. We will make the punching knife according to your requirement, the punching knife can be steel knife or laser knife, steel knifes are used to punch inaccurate product, laser knife are used to punch accurate products, such as puzzle mat, etc.

Structure

It is mainly consist of hydraulic cylinder, control panel, punching table, link devices, automatic lubrication system, cutting height and cutting force adjustment device, automatic balancing mechanism, etc.

Principle

Motor drive hydraulic cylinder to make the frame holder move up and down to punch the sheet products to mat products,the finished mat shape and size will be exactly same as the knife shape and size.

Specification and Prices

Model	Pressure	Punching Table Size	Power	Dimension	Weight	Price
JYCQ-106536	10ton	650x360mm	1.1kw	1×0.7×1.5m	1200kgs	Please contact us to inquire
JYCQ-128040	12ton	800x400mm	1.1kw	1.1×0.7×1.5m	1400kgs	Please contact us to inquire
JYCQ-148040	14ton	800x400mm	1.1kw	1.1×0.7×1.5m	1500kgs	Please contact us to inquire
JYCQ-168040	16ton	800x400mm	2.2kw	1.1×0.7×1.5m	1600kgs	Please contact us to inquire
JYCQ-189040	18ton	900x400mm	2.2kw	1.2×0.7×1.5m	1700kgs	Please contact us to inquire
JYCQ-2010050	20ton	1000x500mm	2.2kw	1.3×0.8×1.5m	1800kgs	Please contact us to inquire
JYCQ-3516052	35ton	1600×520 mm	3Kw	1.9×0.8×1.5m	2000kgs	Please contact us to inquire
JYCQ-4016062	40ton	1600×620 mm	3kw	1.9×0.9×1.5m	2400kgs	Please contact us to inquire
JYCQ-4516072	45ton	1600×720 mm	4kw	1.9×1.0x1.5m	2500kgs	Please contact us to inquire
JYCQ-5016082	50ton	1600×820 mm	5.5kw	1.9×1.1×1.5m	3200kgs	Please contact us to inquire
Production Lead Time: Within 20days after receiving your down payment.

Photo Gallery

Working Video

Attention Please: When making this video,  works well in China, but now it does not work in China, so that you can not contact us by , if you want co contact us, please click here to contact us by other ways. For making puzzle type rubber tiles, beside punching from rubber sheet by this machine, you also can use our vulcanizing press and Puzzle Type Rubber tile mold to make the puzzle type rubber tiles directly as below photo showing.
