Application
This Tire Sidewall Cutter is designed to cut tire sidewall off from old Tires which no bigger than 1200mm in diameter, each time cut off one tire sidewall only, and cut off one sidewall is better than cut off two sidewalls for next step of using JYQT-38 Tire Strip Cutter to cut tire tread and tire sidewall into 3-5cm wide tire strips.
Structure
Mainly consists of frame, V-belt Transmission System, Helical Gear Speed Change and Direction Change Devices, Motor, Beam, Blade Control System, and Tire Expansion Support System.
Principle
Tire Expansion support system catch the tire tightly, motor via Helical Gear Speed Change Devices drive the tire table rotating smoothly, insert the blade into the tire sidewall, cut off the connection of the tire tread and tire sidewall. The blade adopts YG8 Tungsten Steel, which can cut steel like cutting mud.
Specification and Price
| Model | JYQQ-1200 |
| Power: | 5.5kw |
| Dimension: | 1.2×0.9×1.7m |
| Weight: | 500kg |
| Input: | Tires≤1200mm in diameter. |
| Output: | Tire Sidewalls and Tires without sidewall or only have one sidewall. |
| Capacity: | 40-60Tires/hour |
| Main Shaft Rotating Speed: | 43.6rpm |
| Motor: | Y132M2-6 5.5kw 960rpm |
| Price: | Please Contact us to inquire |
| Production Lead Time: | 7-15days(Exclude Legal Holiday). |
Photo Gallery

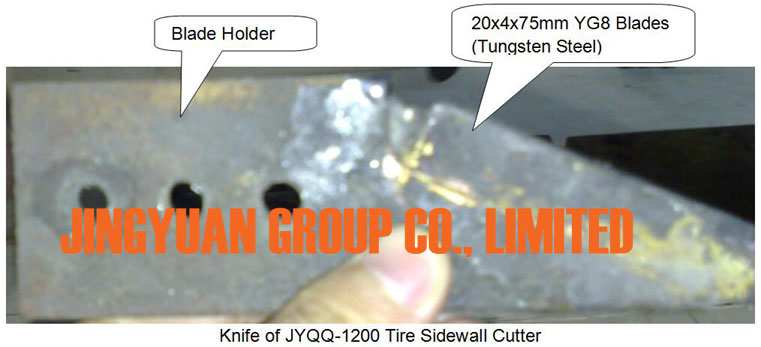

The knife(Tire Cutting Tool)
At the beginning, some buyers worried that this machine may can not cut Steel Belted Radial Tyres, but finally they found that this tire cutting machine cutting Steel Belted Radial Tyres faster than cutting Fiber Belted Tires, because the Tire Cutting Tool adopts YG8 Tungsten Hard Alloy, which can cut steel like cutting mud.
Our workshop for JYQQ-1200 Tire Sidewall Cutter
From Above Photo, you can see that we are professional Tyre Cutting Machine Manufacturers
Below photo showing the JYQQ-1200 Tire Sidewall Cutter were loaded into container Before Shipment.
Tire Sidewall Cutter For Sale Before Shipment
Below photo showing transporting the tire cutting machines by truck.
Tyre Sidewall Cutter For Sale Before Transportation
Video Gallery
Do you want to watch how to cut off tire sidewall? If so, please click below video and watch online.
If you have any question or comment about this Tire Sidewall Cutter, please feel free to contact us or leave your comment below.
robert
hello i am interested in your jyqq-1200. will it operate on single phase 240. i am in Dayton Ohio USA
admin
Hello, Robert,
Thank you for inquiry for this machine.
Yes, it will work on single phase 240V, we can customize the machine power system according to your power supply.
By the way, I sent our tire recycling machine catalog to your Email, please read it in your Email.
From now on, Let’s communicate by Email,if you have more question, please reply my Email, Ok?
Best regards,
Joe vito
Can you send me a procure and price list I would like a tire cutter and a tire Machein that cuts it into strips
My address is 30 lower Powderly st Carbondale pa 18407 United States
Dom
Interested in a used tire cutting machine. I owned a tire hauling business. I need one asap.
admin
Hello, Dom, Thank you for inquiry, We just sent you an Email with two attached files, one file include different type of tire cutting machines, crushing machines,etc, the other file include different capacity tire recycling plants, please find our Email in your email inbox or spam box, and contact us by replying my Email, Ok?
If you did not receive our Email, please comment below, so that we can resent the Email by another Email address.
Best regards,
Admin
Pablo Povez
Hi, I’ve been looking for used tire recycling machines and found your web page. Would you please be so nice to send me by email information about your machines?
Is it possible to also get fob prices as reference?
admin
Hello,Pablo Povez,
Thank you for inquiring our used tire recycling machines.We just sent the details to your Email, please find the files in your Email inbox or spam box, if you have more question, please replying our Email directly instead of comment here, Ok? If you did not receive the email, you can comment below to let us know, so that we can resend the Email.
Best regards,
Admin
K. Smith
interested in the 300-400kg/hour system
admin
Hello,K. Smith,Thank you for inquiring 300-400kg/hour tire recycling system.
We just sent you the details to your Email.Please find our reply in your Email inbox or spam box. If you have more question, please replying our Email directly instead of comment here, Ok? If you did not receive the email, you can comment below to let us know, so that we can resend the Email.Best regards,
Admin
jose ruvalcba
I need a tire cutting system that can produce a 6in chip tire. please let me know if you can help
admin
Hello, Jose Ruvalcba,Thank you for your inquiry.
For producing 1 6in chip tire, please visit http://www.usedtirerecycling.com/jylq-1200-tire-cutting-machinechopper/, this machine can do a good job.Best regards,Admin
Russell
I would like email on you tyre cutting products. Thank you
admin
Hello,Russell, ok, please send us tyre cutting products by Email, best regards, Admin
Russell
What is your email so I can talk about tyre cutting machines?
admin
Hello, Russell, please send your email to trademanager@vip.163.com, thank you. Best regarding, Admin
Paul
will this tool cut only one wall at a time? Or does it only cut both at the same time?
admin
Hello, Paul, Yes, this machine cut only one wall at a time, but it can cut both truck tires and car tires.
For cut both sidewalls from truck tire at the same time, need to use JYQQ-1201 Truck Tire Sidewall Cutter from Both Sides, for price and details of this machine, please visit
http://www.usedtirerecycling.com/jyqq-1201-truck-tire-sidewall-cutter-from-both-sides/
For cut both sidewalls from car tires at the same time, need to use JYQQ-750 Car Tire Sidewall Cutter from Both Sides, for price and details of this machine, please visit
http://www.usedtirerecycling.com/jyqq-750-car-tire-sidewall-cuttercut-from-both-sides/
By the way, we just sent above reply to your Email, please find our reply in your Email inbox or spam box, if you have more question, please contact us by replying our Email, Ok?
Best regards,
Admin
Rocco Ventrice
Hi, can you please provide a price and shipping information to the US for JYQQ-1200 Tire Sidewall Cutter. Thank you.
admin
Hello, Rocco Ventrice,
Thank you for inquiry about our JYQQ-1200 Tire Sidewall Cutter as shown on http://www.usedtirerecycling.com/jyqq-1200-tire-sidewall-cutter/.
The cost price of this machine is US$1600/- FOB Qingdao, China. Could you please let me know which seaport is closest to you, so that we can quote you the shipping freight from here to your seaport?
By the way, we just sent you an Email, please contact us by replying our Email instead of comment here, Ok?
Best regards,
Admin
Admin
Dean Clark
I was thinking on getting into recycling tires here in Dillingham Alaska, can you please send me me a catalog and price list of your machines, and what the shipping cost would be. We have a sea port here in Dillingham. Thank you, Dean
admin
Hello, Dean Clark, Thank you for inquiry about our tire recycling line, we just sent the files to your Email, please find the files in your Email inbox or spam box. Best regards, Admin
Jeremy
Please email info on your 1.2m side wall cutter
admin
Hello,Jeremy, thank you for inquiry, we just sent the price and details of our machine and different capacity tire recycling plant to you by Email, now you can see the file in the inbox or spam box of your Email, please. Best regards, Admin
Marc Maxwell
I am interested in 1 machine F.O.B. Texas.
admin
Hello,Mr. Marc Maxwell,
Thank you for inquiry of our JYQQ-1200 Tire Sidewall Cutter.
The price is USD1700 FOB Qingdao,China, the shipping freight and insurance charges from here to Texas, USA is USD100, that means the price will be USD1700+USD100=USD1800 CIF Texas, USA.
By the way, we just sent the catalog of all our tire recycling machines and different capacity tire recycling plant to your email, now you can find the file in the inbox or spam box, please.
Best regards,
Web Admin
Larry White
I am interested in the tire sidewall cutting machine and I need to know when is the quickest that I can can get it.
admin
For JYQQ-1200 tire sidewall cutter(mainly for truck tires) on http://www.usedtirerecycling.com/jyqq-1200-tire-sidewall-cutter/, now we do not have in stock, the production lead time is 30days. For JYQQ-750 tire sidewall cutter(for car tires) on http://www.usedtirerecycling.com/jyqq-750-car-tire-sidewall-cuttercut-from-both-sides/, we have in stock, we can ensure the shipment within one week.
By the way, we just sent the catalog of our tire recycling machines with price and specification to your Email, now you can find our catalog in the inbox or spam box of your Email, please. Best regards, Web Admin
