Application

When crushing fiber tire blocks, there will be a lot of coarse fiber thread and fiber ball on top of the big vibration screen, this machine is designed to remove the coarse fiber thread and fiber ball from above of the vibration screen.

Structure

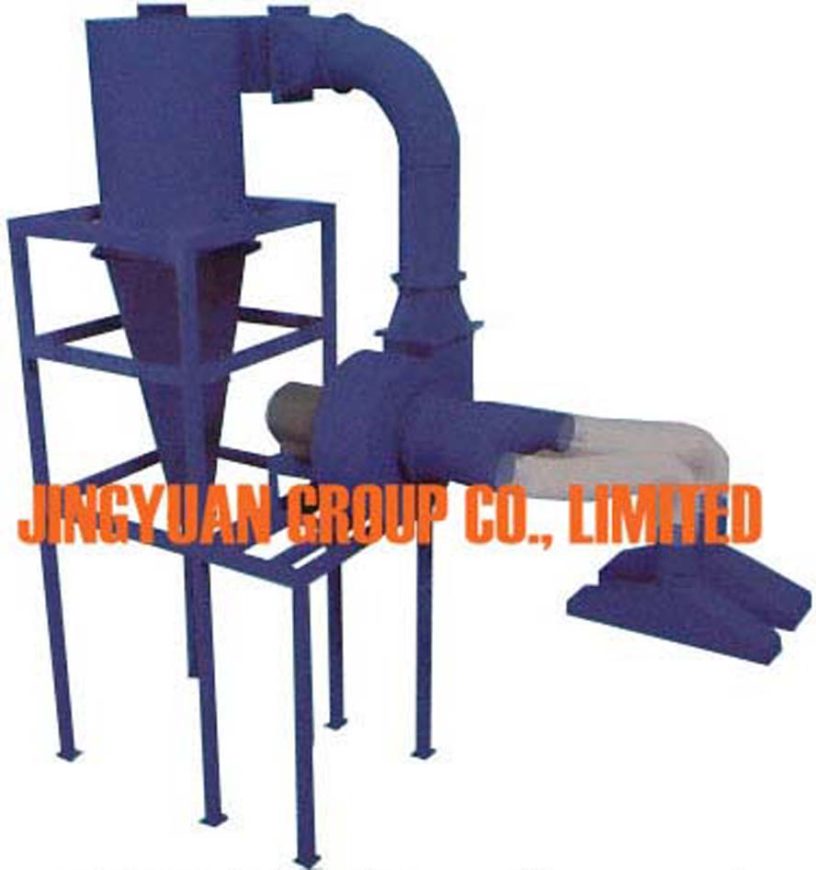

Mainly consists of Frame, Blower, Suction Hood, Pipes, and Cyclone Hopper, etc.

Principle

When the big blower work, will cause great Negative Pressure at Suction Hood, so that to suck the coarse fiber thread and fiber ball to the cyclone hopper via pipes, then fall down in the cyclone hopper to the outlet under the cyclone pressure.

Specification and Prices

 Photo Gallery

The JYXF-400 Fiber Separator Built In One Tire Block Crushing Line

Fiber Thread and Fiber Ball Removed by JYXF-400 Fiber Separator

REMARKS ABOUT FIBER SEPARATOR SELECTION:

JYXF-500 Fiber Separator is ideal machine to separate fly fiber from rubber granule or rubber powder,the separated fiber is very clean as below photo.

Small Fiber(Recycled Tire Products of this plant and be Separated out by JYXF-500 Fiber Separator)

If you this JYXF-500 Fiber Separate is too expensive and you can accept Dirty Fly Fiber with some rubber powder inside as below photo, please use JYXF-150 Fiber Separator.

Mixture of Fly Fiber and Rubber Powder Removed by JYXF-150 Fiber Separator(The shortage of this Fiber Separator is can not Separate Fly Fiber and Rubber Powder)

If you think JYXF-500 fiber Separator is too expensive and JYXF-150 Fiber Separator is too poor, you can buy JYXF-200 Fiber Separator, the separated fly fiber by JYXF-200 Fiber Separator will be as below photo showing.

Fly fiber Separated by JYXF-200 Fiber Separator

If you crush fiber tires JYXKP series tire block crushing line, there will have coarse fiber thread and fiber ball shaped on top, if so, you can use JYXF-400 Coarse Fiber Separator to remove the fiber thread and fiber ball as below photo showing.

Fiber Thread and Fiber Ball Removed by JYXF-400 Fiber Separator
