Application

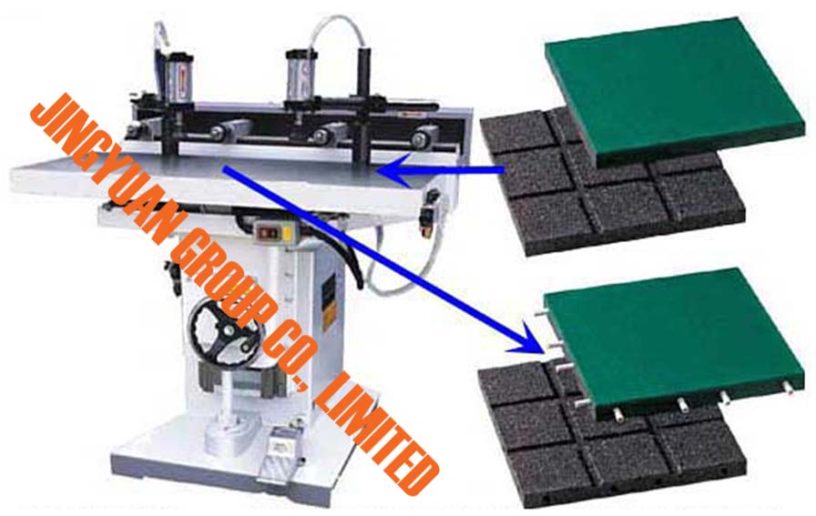

This machine Multi Spindle Drilling Machine is designed simutanously drill multi holes to rubber tiles,rubber ramp,and other rubber parts or plastic parts or wood parts,etc.
Structure
It is mainly consist of frame, motor, PVC transmission belt, Drill Chucks, Drill Bits,Work Table, etc.
Principle
According to the pin hole location drawing, adjusting the drill chucks locations, then fix them. Through PVC transmission belt, motor drive drill chucks rotate, put the rubber tiles on the work table and push the work table forward, the drill bits will drill holes from the rubber tile, rubber ramps, other rubber products, plastic parts, wood parts, etc.
Specification and Prices
| Model | JYPZ-1045 |
| Power: | 2.2kw |
| Dimension: | 1200x1230x1200mm |
| Weight: | 200kgs |
| Input: | Rubber tiles or rubber mats or other rubber parts or other material parts, such as plastic parts, wood parts, etc, which need to drill multi holes. |
| Output: | Rubber tiles or rubber mats or other rubber parts or other material parts, such as plastic parts, wood parts, etc, which drilled multi holes. |
| Drill bits rotation speed: | 4000rpm |
| Drill bits quantity: | 4pcs |
| Work table dimension: | 1000x450mm |
| Drill bit lifting stroke: | 100mm |
| Drill chuck work railway length: | 950mm |
| Maximum distance between two drill bits: | 50mm |
| Maximum drilling depth: | 60mm |
| Delivery Lead Time: | 10days. |
| Price(FOB Qingdao,China): | Please contact us to inquire |
Video of how this machine work
