Application
Used to cut OTR tire sidewalls and OTR tire Treads into 500x500mm OTR tire sections, the maximum OTR tire size can be cut is 2400mm in diameter or 4000mm in diameter.
Structure
Mainly consists of frame, motor, cutting disc, cut disc moving rail, OTR tire bracket, etc.
Principle
OTR tire bracket support the OTR tire tread or sidewall, motor drive cutting disc rotate to amputate the OTR tire tread or sidewalls into minimum 500mm sections.
Specification and Prices
| Model | JYCD-2400 | JYCD-4000 |
| Power: | 6.6kw | 6.6kw |
| Dimension: | 2.7*1.0*1.7M | 3.2*1.0*1.7M |
| Weight: | 1100kg | 1800kg |
| Input: | 1600mm≤OTR Tire Treads or Sidewalls≤2400mm in diameter. | 2400mm≤OTR Tire Treads or Sidewalls≤2400mm in diameter. |
| Output: | Minimum 500mm OTR Tire Sidewalls and OTR Tire Treads Sections. | Minimum 500mm OTR Tire Sidewalls and OTR Tire Treads Sections. |
| Capacity: | 1-3 OTR Tires/hour | 1 OTR Tires/hour |
| Delivery Lead Time: | 30days. | 30days. |
| Price: | Please contact us to inquire | Please contact us to inquire |
Photos

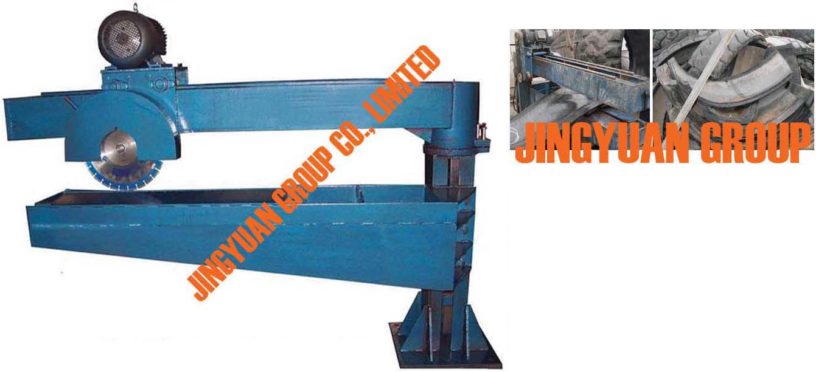

Working Photo of JYCD Series OTR Tire Amputator(OTR Tire Cutting Machine) from front
Working Photo of JYCD Series OTR Tire Amputator(OTR Tire Cutting Machine) from side
OTR Tire Sections Cut by JYCD Series OTR Tire Amputator(OTR Tire Cutting Machine)
Video
Video
Attention Please: When making this video,
works well in China, but now it does not work in China, so that you can not contact us by , if you want co contact us, please click here to contact us by other ways.
Imam Wowor
Do you have super tire shredder which can shred OTR tires into tire blocks?
admin
Sorry, we do not have. The biggest tire shredder we can make is to shred 1700mm tires in diameter.
paul
I am looking for tire machine cutting I am making furniture with tires. Machine cutting side and top. Wire tire. Can JYCD2400 ORT machine do the job. Is how much. Price
admin
Hello, Paul, as far as we know, for making furniture from used tires, you need to cut both sidewalls off, we have 6 machines can do this job, we just send price list of them to your Email, please find the price list in inbox or spam box of your Email. Best regards, Admin
