Application
Used to weigh and pack various powder or granule material into bags at setting weight.
Structure

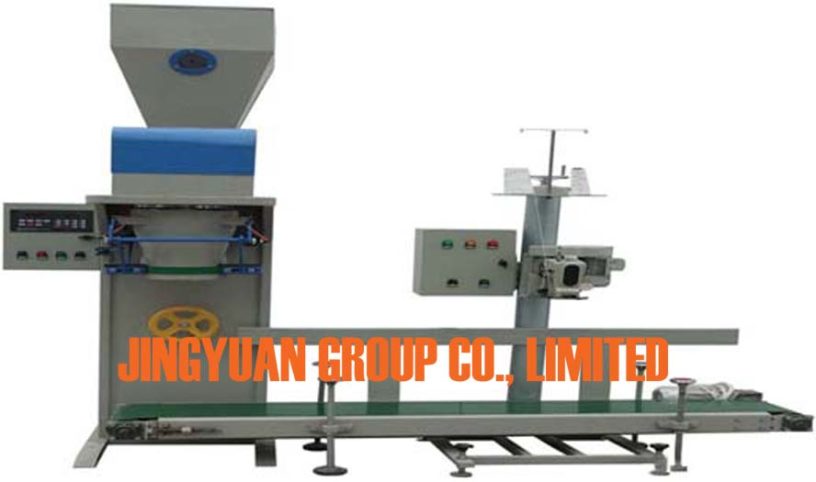

Mainly consists of frame, bag catching device, material hopper, material blocking breaking device, material hopper, horizontal screw feeder, material falling mouth, weighing instrument, sensor, control panel, converter, air cylinder, solenoid valve, belt conveyor, bag sewing machine, etc.
Principle
Set the bag weight you want to get, and put bag on the bag catching device, material blocking device will break possible material blocks in the material hopper, so that the material can fall to the horizontal screw feeder, which will push the material from the material hopper to the falling mouth and fall into the bag, weighing instrument real-time detect the bag weight, sensor send the bag weight to the control panel, once the bag weight closing the setting weight, the converter will automatically lower the feeding speed of horizontal screw feeder to feed material slowly, once reach the setting weight, the horizontal screw feeder will stop automatically and the material falling mouth will closed, the bag catching system will release the bag to the belt conveyor, the belt conveyor will convey the bag to the sewing machine, sewing machine will sew the bag.
Specification and Prices
| Model | JYDL-25-50 |
| Power: | 3kw |
| Dimension: | 3×1.4×2.7m |
| Weight: | 600kg |
| Input: | Various Powder or Granule Material |
| Output: | Bags at setting weight(25-50kgs) |
| Weighing Accuracy: | 99.8% |
| Bagging Range: | 25-50kgs |
| Capacity: | 180-220bags/hour |
| Compressed Air Requirement | 0.45-0.6mpa, 0.2cubic meters/min |
| Delivery Lead Time: | 30days(Exclude Legal Holiday). |
| Price: | Please contact us to inquire |
Inside View of Control Panel With Converter of JYDL-25-50 Automatic Weighing and Packing Machine
JYDL-25-50 Automatic Weighing and Packing Machine With Feeding Oblique Screw Conveyor
Video
Attention Please: When making this video,
works well in China, but now it does not work in China, so that you can not contact us by , if you want co contact us, please click here to contact us by other ways.
More from my site
JYJB-200 Hydraulic Tilting Type Wet Pour Mixer
500X500mm Faux Leaf Rubber Floor Tile Molding Mold(1 Cavity Per Female Mold)
Rubber Tree Rings
500X500mm Square Rubber Floor Tile Molding Mold(1 Cavity Per Female Mold)
500X500mm Pimple Surface Square Rubber Floor Tile Molding Mold(1 Cavity Per Female Mold)
Buying Lead of Recycled Tires Bead Wire Scrap
Florrie
Can this weighing and packing machine be used to weigh and pack chemical fertilizer?
admin
Yes, this JYDL-25-50 Automatic Weighing and Packing Machine can be used to weigh and packing any powdery and granular products,include chemical fertilizer.
Rakha Harlim
Can we adjust the setting weight of each bag? e.g 30kgs/bag or 35kgs per bag.
admin
Yes, you can set the weight of each bag. If you set it 30kgs per bag, once the bag weight reach 30kgs, the feeder will stop automatically, and restart to feed after the operator put a new bag on. If you set it 35kgs per bag, once the bag weight reach 35kgs, the feeder will stop automatically, and restart to feed after the operator put a new bag on……
Luciano
Is there a way to increase the bagging range?
admin
Hello, Luciano, Thank you for inquiry. What range do you want? We just sent you an Email, please find our Email in your Email inbox or spam box, and contact us by replying our Email, Ok? Best regards, Admin
