Application

It includes one set of cyclone collecting machine to collect the rubber buffing.

Structure

Mainly consists of Frame, Motor, V-belt Transmission System, Hydraulic Tire Lifting System, Tire-Catching and Driving System, Buffing Head Moving System, Electrical Control Panel, Pneumatic parts, Cyclone Collecting Machine, etc.

Principle

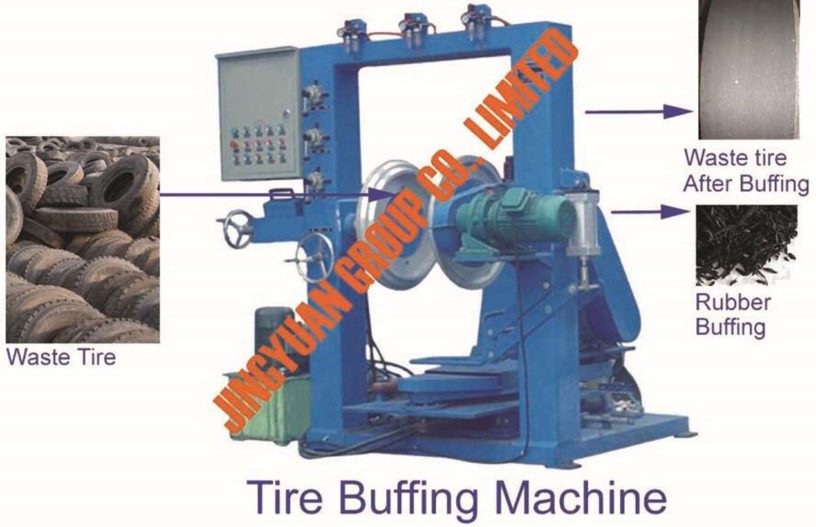

Hydraulic Tire Lifting System lift tire to the Tire Catching System, which catch the tire and drive it rotate, Move the Buffing Head Forward, the Buffing Blades Scratch tire buffing from the tire surface.

Specification and Prices

Model:	JYDM-1425	JYDM-2235
Power:	19kw	30kw
Dimension:	2.0M x 1.5M x 1.9M	2.2M x 2 M x 2.5M
Weight:	1800kgs.	3200kgs
Input:	14”-25” rim tires(Max 1200mm in Diameter).	22”-35” rim tires(Max 1700mm in Diameter).
Output:	Scratched Tires and Rubber Buffing	Scratched Tires and Rubber Buffing
Delivery Lead Time:	30days(Exclude Legal Holiday).	30days(Exclude Legal Holiday).
Price:	Please contact us to inquire	Please contact us to inquire

Photo Gallery

Three Sets of Tire Buffing Machines Without Buffing Collecting Machine

Tire Buffing Machines With Buffing Collecting Machine and Spare Tire Catching Plates

Two Sets of Tire Buffing Machines With Buffing Collecting Machine

Tire Buffing Machine For OTR Tire

Tire Buffing Machine For OTR Tires

Tire Buffing Machine Before Shipment

Tire Tread After Buffing Process

+4 Mesh Rubber Buffing from used tires——Price: US$0.38/kg FOB Qingdao,China

Fine Rubber Buffing (5mm)——Price: US$0.38/kg FOB Qingdao,China
