Application
Used to cut OTR tire sidewalls from OTR tire Treads, the maximum OTR tire size can be cut is 2400mm in diameter or 4000mm in diameter.
Structure
Mainly consists of frame, OTR tire expansion supporting mechanism, OTR tire rotating system, motor, V-belt, control panel, knife and knife cooling system, etc.
Principle
OTR tire expansion supporting mechanism expand to catch the OTR tire, Motor drive the OTR tire rotate, then insert knife from above, so that to cut off the sidewall, the cooling system will spray cooling water to the knife.
Specification and Prices
| Model | JYQQ-1600 | JYQQ-2400 | JYQQ-4000 |
| Power: | 7.5kw | 10.2kw | 17.7kw |
| Dimension: | 2.0*1.6*1.9M | 3.2*2.4*2.6M | 5*4*3.2M |
| Weight: | 800kg | 2100kg | 3500kg |
| Input: | ≤1600mm in diameter. | 1600mm≤OTR Tires≤2400mm in diameter. | 2400mm≤OTR Tires≤4000mm in diameter. |
| Output: | OTR Tire Sidewalls and OTR Tire Treads. | OTR Tire Sidewalls and OTR Tire Treads. | OTR Tire Sidewalls and OTR Tire Treads. |
| Capacity: | 10-20 Tires/hour | 1-3 OTR Tires/hour | 1 OTR Tires/hour |
| Delivery Lead Time: | 30days. | 30days. | 30days. |
| Price: | Please contact us to inquire | Please contact us to inquire | Please contact us to inquire |
Photos

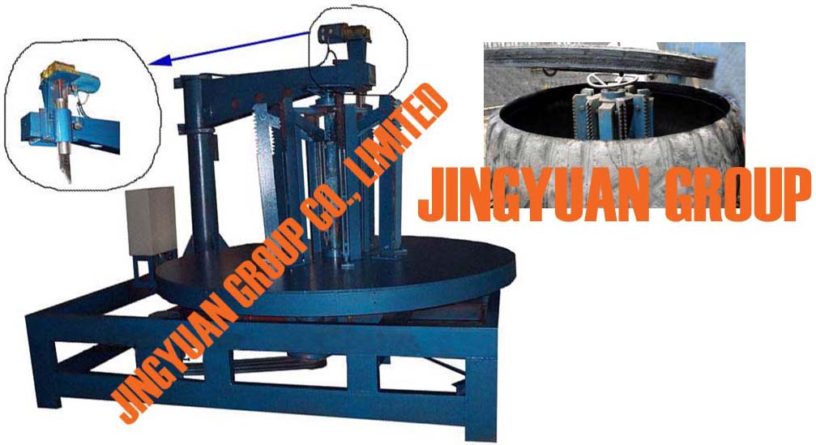

OTR TIRE SIDEWALL CUTTER AND SKETCH
OTR Tire Sidewall Cutter Working Photo
OTR Tire Sidewalls Stack in Pile
Video
Attention Please: When making this video,
works well in China, but now it does not work in China, so that you can not contact us by , if you want co contact us, please click here to contact us by other ways.
